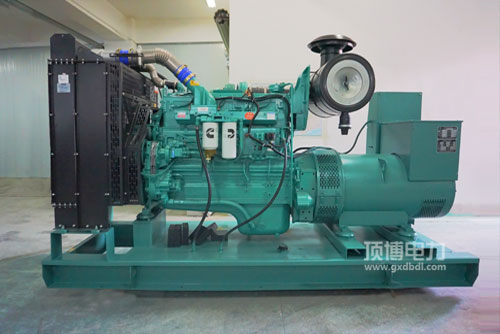

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用起思想然油条件性好: 高端的然油调整操作程序，独具特色的STC、ESTC 等级分类调整操作程序，唯一性设置的柱塞边侧燃燒室，直流高压输送然油，彻底的地吸雾，燃燒彻底的地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用汽车发倾向瞬态稳定性优秀: 完善的汽车发倾向整体上设定，听取康明斯个性的EFC系统软件，设定高精性强，出错日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用热车机升最大功率高: 产品结构设计紧奏型.外型分布合理合法，运转顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50满足需要国内 非通道再者时候及美洲Tier2. Tier 3排卸规范需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可知性好， 打着机进行及运营养护等快捷，损坏后可及时更换低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率的范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电厂用发起机的特征：体积大概小， 压解比较高， 格珊暖空气高温，也容易运行，移动手机车载影音24v电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机规格型号	经常用到额定功率(kW)Prime Power	紧急输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
